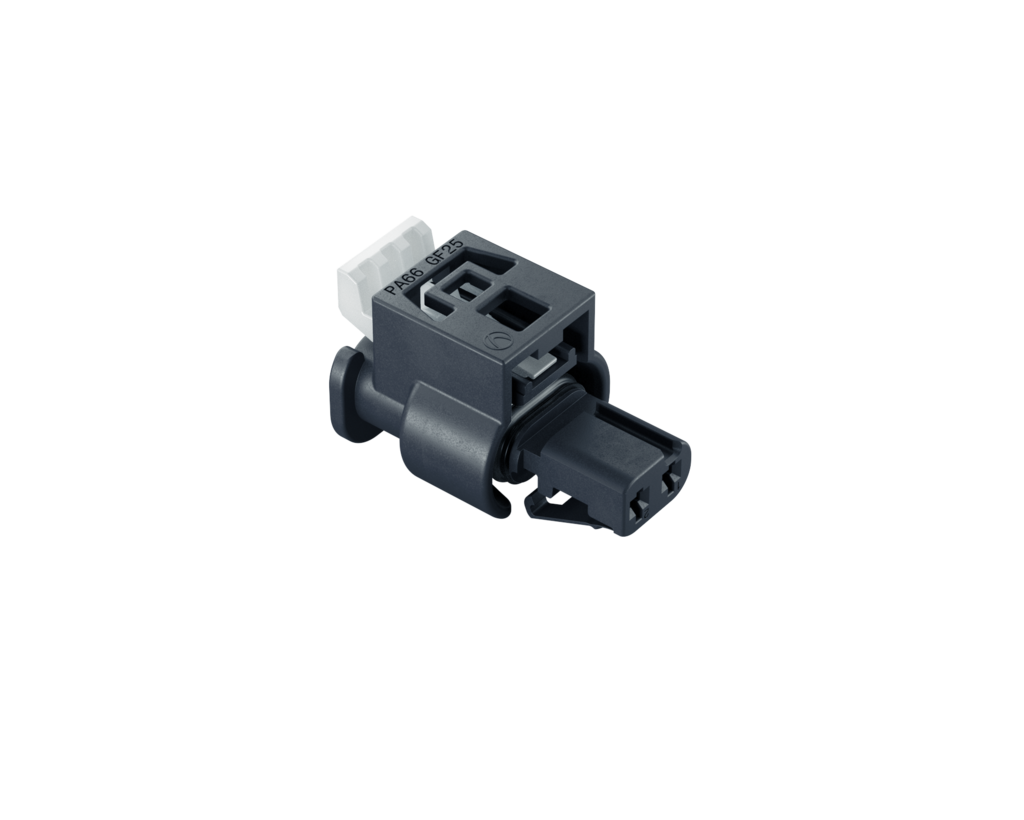

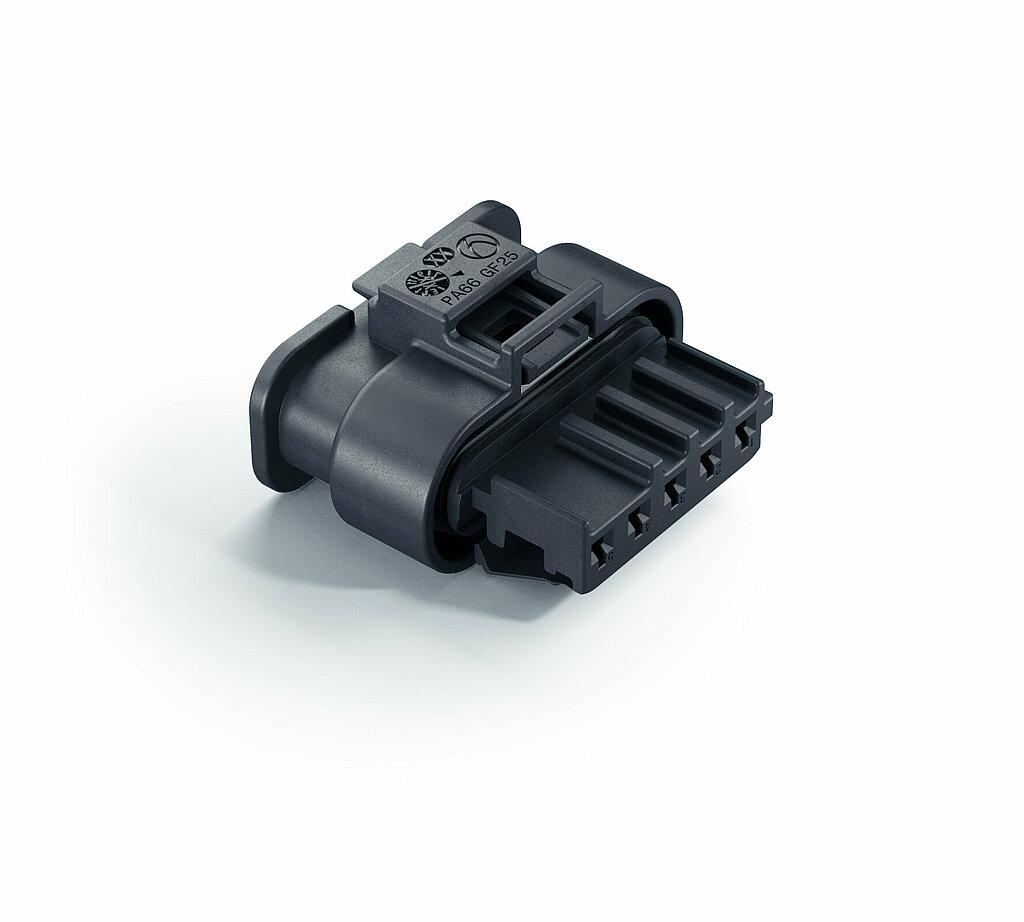

1.2 SealStar （密封之星）母端
销售团队 中国 是您的专属咨询联系人
中国
| 产品技术信息 | 1.2 SealStar F LL | ||
| 产品料号 | 2孔 805-120-… 3孔 805-121-… 4孔 805-122-… 5孔 805-123-… 6孔 805-124-… | 2孔 872-857-… 3孔 872-858-… 4孔 872-859-… 5孔 872-860-… 6孔 872-861-… 8孔 872-862-… |
| 产品界面 | female (F) | |
| 产品规格 | EPS-100011-00 | |
| 工艺规范 | EVS-100013-00 | |
| 产品技术信息 | ||
| 端子数量 | 2,3,4,5,6,8孔 | |
| 端子间距 | 4.0 mm | |
| 导线尺寸范围 | max. 1.00 mm2 | |
| 带密封应用 | 密封 | |
| 料号编码 | 可用 | |
| 电压等级 | ≤ 60 V | |
| 端子排数 | 1 行 | |
| CPA (连接器二次锁) | 有 CPA | 无 CPA |
| TPA（端子锁定） | 使用 TPA | |
| 适配端子类型（一次锁定） | Locking Lance (LL) | |
| 端子塑壳原材料 | PA66 GF25 | |
| 配套部件 | ||
| 适配端子系统 赫尔思曼汽车技术不销售，请直接联系供应商 | TE Connectivity MCON 1.2 LL: C-1452674 (图纸) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (图纸) | |
| 端子雨塞直径 (ELA & ELB) 赫尔思曼汽车技术不销售，请直接联系供应商 | Ø 3.55 mm 连接器孔数 SWS 在相应的终端图纸上给出 | |
| 连接器接口说明 | ||
| 母端接口图纸 | 872-975-…00 | |
| 产品技术信息 | 1.2 SealStar F LL | ||||
| 产品料号 | 4孔 807-550-… 6孔 807-551-… 10孔 807-602-… | 8孔 805-031-… 12孔 806-344-… 12孔 807-479-… 16孔 805-587-… 16孔 807-445-… | 8孔 805-031-… | 12孔 806-360-… |
| 产品界面 | female (F) | female (F) | female (F) | |
| 产品规格 | EPS-100087-00 | EPS-100011-00 | (n/a) | |
| 工艺规范 | EVS-100089-00 | EVS-100013-00 | EVS-100061-01 | |
| 产品技术信息 | ||||
| 端子数量 | 4,6,10孔 | 8,12,16孔 | 12孔 | |
| 端子间距 | 4.0 mm | 4.0 mm | 2.54 x 3.0 mm | |
| 导线尺寸范围 | max. 1.00 mm2 | max. 1.00 mm2 | max. 1.00 mm2 | |
| 带密封应用 | 密封 | 密封 | 密封 | |
| 料号编码 | 可用 | 可用 | 可用 | |
| 电压等级 | ≤ 60 V | ≤ 60 V | ≤ 60 V | |
| 端子排数 | 2 行 | 2 行 | 2 行 | |
| CPA (连接器二次锁) | 有 CPA | 有CPA | 无 CPA (2x lateral latches) | 无 CPA |
| TPA（端子锁定） | 使用 TPA | 使用 TPA | 使用 TPA | |
| 适配端子类型（一次锁定） | Locking Lance (LL) | Locking Lance (LL) | Locking Lance (LL) | |
| 端子塑壳原材料 | PA66 GF25 | PA66 GF25 | PA66 GF25 | |
| 配套部件 | ||||
| 适配端子系统 赫尔思曼汽车技术不销售，请直接联系供应商 | TE Connectivity MCON 1.2 LL: C-1452674 (图纸) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (图纸) | TE Connectivity MCON 1.2 LL: C-1452674 (图纸) Kostal MLK 1.2-Sm: DOC00079128, DOC00072546 (图纸) | Kostal MLK 1.2-Sm: DOC 00072546 Kostal MLK 1.2-S: DOC00079128 (图纸) | |
| 端子雨塞直径 (ELA & ELB) 赫尔思曼汽车技术不销售，请直接联系供应商 | Ø 3.55 mm 连接器孔数 SWS 在相应的终端图纸上给出 | Ø 3.55 mm 连接器孔数 SWS 在相应的终端图纸上给出 | TE Connectivity 产品料号 1-1452424-2 1-1452424-1 | |
| 连接器接口说明 | ||||
| 母端接口图纸 | 808-170-…00 | 808-015-…00 | 808-124-…00 | |
| 孔数 | 二次锁 | 料号 | 编码 | 扭曲保护塑壳 | 中性母头连接器接口 | 验证状态 | ||
| 2 | - | 872-857-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-120-... | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 3 | - | 872-858-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK31/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-121-... | ZVEI: TK41/SG4 | USCAR2: T4/V4/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 4 | - | 872-859-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK41/SG3 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-122-... | ZVEI: TK41/SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| ✓ | 807-550-... | 符合标准 | 808-170-...00 | ZVEI: SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||
| 5 | - | 872-860-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK41/SG4 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-123-... | ZVEI: TK41/SG3 | USCAR2: T2/V3/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| 6 | - | 872-861-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK41/SG4 | USCAR2: T2/V2/S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-124-... | ZVEI: TK41/SG4 | USCAR2: T3/V2/S2 | IP-CODE: IPX7/IPX9K2 | ||||
| ✓ | 807-551-... | 符合标准 | 808-170-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | ||
| 8 | - | 872-862-... | 可选 | 可选 | 872-975-…00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| ✓ | 805-031-... | 808-015-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | |||
| - | 805-031-... | 872-975-…00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | |||
| 10 | ✓ | 807-602-... | 可选 | 符合标准 | 808-170-...00 | ZVEI: TK41/SG4 | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 |
| 12 | ✓ | 806-344-... | 可选 | 可选 | 808-015-...00 | ZVEI: TK41/SG4 | USCAR2: T3/V3/S2 | IP-CODE: IPX7/IPX9K2 |
| - | 806-360-... | 808-124-...00 | ZVEI: TK41/SG4_AG | USCAR2: S2 | IP-CODE: IPX7/IPX9K2 | |||
| 16 | ✓ | 805-587-... | 可选 | 可选 | 808-015-...00 | ZVEI: TK41/SG4 | USCAR2: T3/S2 | IP-CODE: IPX7/IPX9K2 |
1 使用LV124的温度采集方式进行测试
2 建议使用保护盖以达到IPX9K
